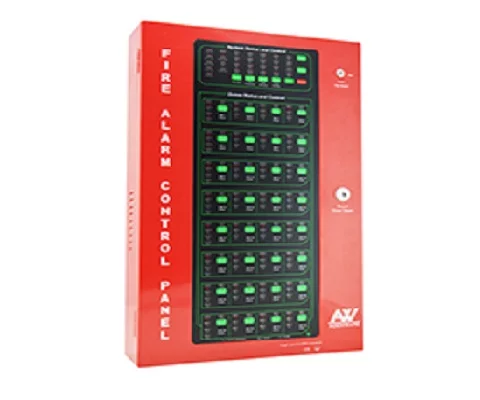

Asenware AW-CFP2166 16 Zone Conventional Fire Panel
Availability:In Stock!
Asenware AW-CFP2166 16 Zone Conventional Fire Panel
- It is modularized design, the panel can expend from 1 zone to 32 zones easily.
- It has 2 level control mode by a lock
- It has 24VDC and 5VDC power supply output.
- It has FIRE and FAULT signal output.
- It has 2 general sounders output.
- Each zone has 1 circuit detectors input .Each zone can be disable by a button.
- It has RESET button to reset the panel.
- It has SILENCE button to stop BUZZER and SOUNDERS.
KSh 36,000.00
CompareAsenware AW-CFP2166 16 Zone Conventional Fire Panel
The AW-CFP2166 series 8 Zone conventional fire alarm panel is designed based on EN54 part 2＆4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation, up to 16 zones for larger applications.
| Mains supply voltage | 110VAC or 220VAC |
| Internal power supply | 27.2VDC |
| Total output current limited | 3A @ 220VAC |
| Batteries (default configuration) | 12V2.3AH*2 |
| Number of circuit | 12-32 |
| End of Line device | 6.8k Ω,5% tolerance, 0.5-1W (colour code-blue,grey,red,gold) |
| Call point resistor value | 470 to 680 Ω, 0.5 or 1 watt |
| Number of general circuits | 2 |
| Outputs fused AT | 600mA |
| Maximum number of bells @ 50mA of each Sounder output | 30 |
| Battery fuse | 1.85A resettable fuse |
| Sounder outputs | 750mA resettable fuse |
| Output type | NC and NO relay |
| Maximum current | 100mA |
| Largest acceptable conductor size | 2.5mm2 |
| Smallest acceptable conductor size | 0.75mm2 |
| Dimensions(mm) | 640X390X150 |
| Weight (with batteries) | 13kg |
