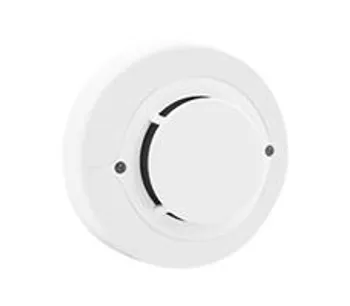

Asenware Conventional Smoke Detector AW-CSD381
Availability:In Stock!
Asenware Conventional Smoke Detector AW-CSD381
- Model No. : AW-CSD381
- Photo-Electric type spot detector
- Built in dual LEDs
- Visible from all around 360°
- Remote indicator output
- Compatible with most brands fire alarm panels.
- LPCB approved.
KSh 1,200.00
CompareAsenware Conventional Smoke Detector AW-CSD381
Connection type: 2 Wire
Work voltage : 9 to 28 VDC
Alarm current : ≤ 15 mA@24 VDC
Standby current: ≤ 120 μA@24 VDC
Sensitivity : 0.1 – 0.15 dB/m
Dimensions: 99.45 Dia & 48.2 mm High
Work temperature : -10 ℃ to 50 ℃
Work humidity : ≤ 95% RH
Standards: EN 54-7 : 2018
